Project 2 Gitlet Design Doc

Reflection

Design Pattern and Architecture, MVC

Unfortunately, I hadn't leart about design patterns when I was working on this project. Looking back on, I've found many of the design and abstractions already had the naive tendency to follow the MVC architecture.

We have the definition of classes and objects and their corresponding directory structure when being serialized. There's a group of static functions in Repository to manipulate these blobs, regardless of how to manipulate and how to represent them. These functions and definition belong to the Model, which is the internal representation of information in the software.

The Controller is responsible for accepting commands, dealing with input/output logic, and then calling the responsible methods of the View and the Model, to display the result or to write data. Part of the controllers are in the Commands class, and part of them in Repository to deal with logic and processing of data. This is not perfect since many of them share the same class with the Model, and many functions have a long calling chain, blurring the boundary between the Model and the Controller, leading to confusion.

One thing to mention is that the Index, or the staged commit, can serve as a buffer between the Controller and the Model. Result of Controller commands such as add, rm are written in the staged commit temporarily, and finally in commit they are written to the Model.

The View, is responsible for representation and display of the internal information. It should also watch for any changes notified by the model, but since every change in the Gitlet file structure is triggered by a user command, there's no such need. Again, most functions lay inside the giant Repository class, such as log, globalLog, etc.

One way to refactor the code, is to separate the one giant Repository class according to MVC architecture. The classes should define their own API to call each other in their perspective public or private methods.

Overview on Git and Preview on Gitlet

Topics over this project:

• Maps.
• Hashing.
• File I/O.
• Graphs.

Git Functionality Model

How git works:

• Every time changes are committed to a file, git stores a copy of the entire repository in .git/
• Using algorithm to avoid redundancy

Approaches of commiting:

1. Make a whole copy of all files for each version
2. Only store files that change
   • GOOD: efficient, avoid storing redundancy
   • BAD: Checkout is complicated, have to copy file from different folders, walk throught from begining
3. Approach 2 but data structure Store a list of "commits", each commit tells filename: version K, V pair for the files in that commit
   • e.g.

     Commits:
     V1: Hello.java → v1
     V2: Hello.java → v2, Friend.java → v2
     V3: Hello.java → v2, Friend.java → v2, Egg.java → v3
     V4: Hello.java → v2, Friend.java → v4, Egg.java → v3
     V5: Hello.java → v5, Friend.java → v4, Egg.java → v3

     Files:
     .git/v1/Hello.java

     .git/v2/Hello.java
     .git/v2/Friend.java

     .git/v3/Friend.java
     .git/v3/Egg.java

     .git/v4/Friend.java

     .git/v5/Hello.java

   • When file are the same between versions, only store one copy
4. Use Hashing as version number
   • Git uses git-SHA1 hash of a file as its version number
     • The SHA1 hash of (file size + a zero + the file contents).
   • The git-SHA1 hash is a deterministic function of the file’s contents.
     • Two identical files will always have the same git-SHA1 hash.
     • git-SHA1 hash is 160 bits long.
   • Procedure
     1. First, git computes the git-SHA1 hash:
        • HelloWorld.java -> 66ccdc645c9d156d5c796dbe6ed768430c1562a2
     2. Git creates a folder called .git/objects/66
        • The 66 is the first two characters of the git-SHA1 hash.
     3. Git stores the contents in a file called ccdc645c9d156d5c796dbe6ed768430c1562a2.
        • File is stored in a compressed format (zlib) to save space.

Additional benefit of SHA1-Hashing: Verify file integrity

Git Commits

Every commit in git stores (at least):

• An author.
• A date.
• A commit message.
• A list of all files and their versions.
  • Versions are git-SHA1 hashes.
• The parent’s commit ID.
  • Example: aa45f...db’s parent ID is d1bd...61.

Git commit IDs are files containing the above message, and use git-SHA1 to hash it as filename.

To store an object as a file, we can implement the class as a Serializable

public class Commit implements Serializable {
   public String author;
   public String date;
   public String commitMessage;
   public String parentID;
   ...
}

Git Merging

Commits are a more general structure called a graph

When merging, there can be merge conflicts: when both commits try to edit the same part of the file

public class Cheese {
     ...
}
<<<<<<< HEAD
- asdfasdf
-
- public Cheese Parmesan {
-     ...
- }
=======
+
+ public Cheese Swiss {
+     ...
+ }
>>>>>>> Swiss

After merge completes, one commit have two parents.

*   faff9d1 (HEAD, master) resolve merge
|\
| * 33c7a92 (WithSwiss) added swiss
* | 2720092 fixed parm
* | 7e41ce1 added parmesan
|/
* aa45fbd fixed cheese bug
* d1bde19 version 1 of my code

Objects in Git

• blobs: The saved contents of files. Since Gitlet saves many versions of files, a single file might correspond to multiple blobs: each being tracked in a different commit.
• trees: Directory structures mapping names to references to blobs and other trees (subdirectories).
• commits: Combinations of log messages, other metadata (commit date, author, etc.), a reference to a tree, and references to parent commits. The repository also maintains a mapping from branch heads to references to commits, so that certain important commits have symbolic names.

Each commit (rectangle) points to some blobs (circles), which contain file contents. The commits contain the file names and references to these blobs, as well as a parent link.

Design

Gitlet Objects Explained

The following are merely the concept of data structures used in this project. The current implementation of Commit is using a rather plain structure and doesn't involve inheritance.

Blobs

Blobs are gitlet's internal representation of a file object. The fields are stated above.

All blobs are uniquely identified by their sha1 hash. In my implementation, there're three data that are indexed into this hash: file size (int), file data (byte[]) and filename (String). If two blobs have the same sha1, they are considered the same. Therefore, the hashCode of a blob is sha1.hashCode.

In real git, the sha1 hash is only determined by the previous two fields. The introduction of filename is to resolve such problem in the process of development:

Alright, BIG PROBLEM: If a file is renamed but content not changed, or there's simply a copy of file file with different name, the system view it as a hash collasion.

Solution: Add filename to blob.

This isn't a perfect solution, because renaming a file obviously doesn't change the content of a file. In real life, hashing are used for "checksum" during the process of data transfering. Two copies of data are considered the same if only they have the same content, so hashing should also be determinant ONLY of the content. In gitlet, for simplicity I included the filename as also a part of the content. This is reasonable for the internal representation for a blob object, but not suitable and intuitive for real life situations.

Internal Structure of Blobs and Commits

---

Another problem: The global-log is difficult to maintain for removed branches

Need to improve file structure: In objects, differentiate between blobs and commits

Gitlet Directory Explained

The following shows all necessary files for a gitlet workspace.

.gitlet
├── HEAD
├── staged
├── logs
│   ├ HEAD (copy of current head)
│   └ refs
│     └ heads
│       ├ master
│       └ ...
├── refs
│   └ heads
│     ├ master
│     └ ...
└── objects
    └ ...

.gitlet/HEAD

This file contains the relative path to the current branch. A typical content is

refs/heads/master

In Repository.java, this file is described as ROOT_HEAD_FILE.

Related methods:

• getCurrentBranch - Get the branch name of current branch
• updateRootHead - Update the file with new branch name (when there's a branch switch)

.gitlet/staged

This file is the serialized staged commit. It contains all the changes to the current working directory that are staged but not yet committed.

In Repository.java, this file is described as STAGE_FILE.

.gitlet/refs/

This directory contains a list of reference files, named after branch names, which contains the sha1 reference of the commits they are pointed to.

A typical file content in this directory is

<40-bit long sha1 hash of a commit object>

The heads/ subdirectory contains reference files that are named after branches of local workspace, and remote repositories should be considered added into remotes/.

In Repository.java, the directory is described as REFS_DIR, and the ./heads is described as REFS_HEADS_DIR.

Related methods:

• getHeadCommit + Gets the Commit object referenced by the content (sha1) of a certain file in .gitlet/refs/heads
• getBranches + Get a list of all branches (filenames)
• read/writeCommitRef - Get/Update the content of a reference file

.gitlet/logs

This directory contains commit logs that are made during the growth of the commit tree.

• .gitlet/logs/HEAD The commit log of the current branch
• .gitlet/logs/refs/heads/ The commit logs of all branches in the local repository, named after branch name
• .gitlet/logs/refs/removed The commit logs of all removed branches

A typical content of a log file looks like

2ce65f5a579f3c17fd96c9d2c864963e3b390b6c ff996b889687145ca3f3a94f412d7b7aa44a0d40 1727506906914 Add h.txt
ff996b889687145ca3f3a94f412d7b7aa44a0d40 15cd047907d2ec894289449420354323dc832925 1727506907881 Merged C1 into B1.
15cd047907d2ec894289449420354323dc832925 40ceb5b81ff9addc1209634d0187d3704f1a736e 1727506908023 Merged B2 into B1.

From left to right, separated by white space:

• Sha1 reference of parent commit
• Sha1 reference of current commit
• Commit timestamp
• Commit message

The file whose name is in accordance with the branch in logs/refs/heads/ should be updated whenever a commit is maded to that branch. Also the logs/HEAD should be copy modified when there's a branch switch, or a commit to current branch.

When a branch is removed, all of it's log should be moved and concatnated to logs/refs/removed.

About Unstaged Changes and Destructive Commands

In the design of Gitlet, there're several commands that should be aborted when there is an unstaged change that would be overwritten by the command.

• reset
• checkout
• merge

Further more, when using gitlet status, the command should be able to print out all unstaged changes in the CWD. (This is an extra point.)

Initially, I use the method Commit.hasUnstaged to test whether there's any unstaged changes in the CWD, comparing the files in CWD to the staged commit. The Commit.getUnstaged use the same code, but will return a SortedMap of unstaged changes and their reason of being unstaged.

This turns out to be inefficient, and does not meet the requirement of the project, that is, according to the specs, "abort when the unstaged change would be overwritten". The usage of hasUnstaged however, will about anyway even if this change wouldn't be overwritten.

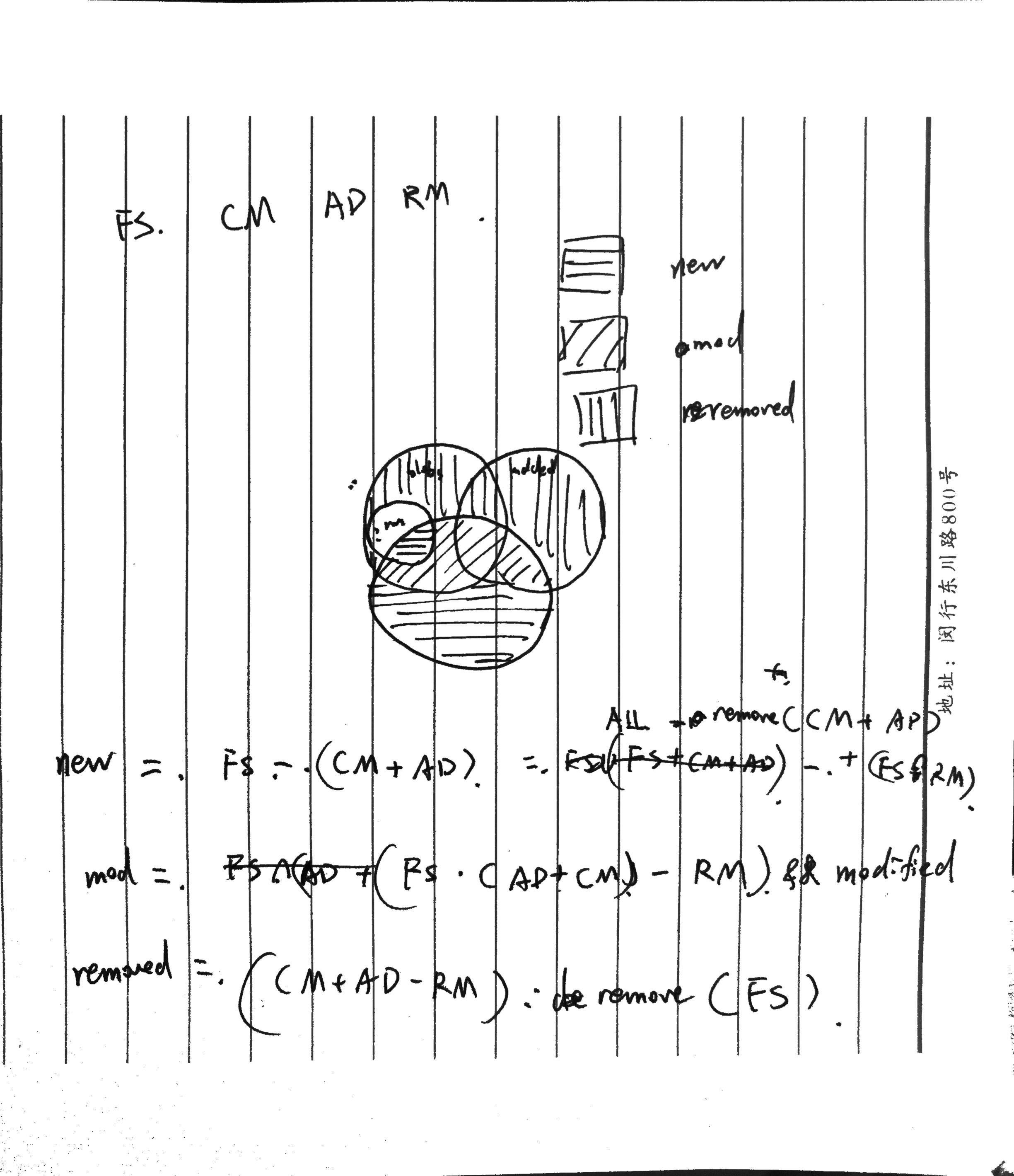

Below is the explaination of the algorithm. It is still used in printing out all unstaged changes.

At this point I decided to design a new function testUnstaged. This function should be called individually when a file need to be checked whether it has unstaged changes, and throws exception when it does.

Throwing the exception during the modification of the working directory is also the problem: The handling of UnstagedException (and other unintended exceptions such as IOException) should involves restoring the previous workspace.

It is very common when you have to do some destructive changes to the files but an exception is in the way. Therefore I also written snapshotWorkspace and restoreWorkspace, which should be basically used in pair. This guarantees the destructive commands won't break the workspace when exception occurs.

Best practice

Restore changes in error handling if the operation is to be aborted.

FIXME

The new testUnstaged and restoreWorkspace workflow is not working on reset. Currently it is still testing whether there're unstaged changes and throws error before everything else.

restoreToCommit

Used in checkout [branch] and reset.

This method throws UnstagedException when it encounters an unstaged change through the test of testUnstaged, and the caller should be able to handle by restoring to the state before.

Add

It looks rather complicated, but currently these logics are processed in instance methods add and remove in Commit, so it doesn't look quite scary.

The logic for adding a non-existent file is mocking the real git, and is not required in gitlet.

Remove

Merge

Finding Closest Common Ancestor

The first step to merging is to find the closest common ancestor between two commits.

Finding the closest common ancestors involves graph traversal.

We first get a HashSet of all ancestors of a given branch. This uses DFS:

private static HashSet<Commit> getAllAncestors(String branch) {
	// Get the starting point
	Commit head = getHeadCommit(branch);
	Hashset<Commit> visited = new HashSet<>();
	Stack<Commit> commitStack = new Stack<>();
	// Push the starting point to stack
	commitStack.push(head);
	while (!commitStack.isEmpty()) {
		// Simulate recursive stack
		Commit current = commitStack.pop();
		visited.add(current);
		for (Commit parent: current.getAllParents()) {
			if (!visited.contains(parent)) {
				commitStack.push(parent);
			}
		}
	}
	// All visited vertexes are ancestors of this branch
	return visited;
}

After we get all ancestors of a given branch, we can find common ancestor between two branches using BFS

• BFS will spread out level by level
• So once we find first common ancestor, it is guaranteed to be the closest ancestor between two branches

private static Commit getCommonAncestor(String our, String their) {
	// Using queue to implement BFS
    Queue<Commit> nodeQueue = new ArrayDeque<>();
    HashSet<Commit> ourVisited = new HashSet<>();
    HashSet<Commit> theirAncestors = getAllAncestors(their);
    Commit ourHead = getHeadCommit(our);
    nodeQueue.add(ourHead);
    ourVisited.add(ourHead);
    // BFS to return common ancestor
    while (!nodeQueue.isEmpty()) {
        Commit current = nodeQueue.remove();
        if (theirAncestors.contains(current)) {
            // If this node is in the ancestors of theirs,
            // immediately return
            return current;
        }
        // else search current node's unvisited parents
        for (Commit parent: current.getParents()) {
			if (!ourVisited.contains(parent)) {
		        nodeQueue.add(parent);
			}
        }
    }
    throw new AssertionError("Shouldn't happen");
}

Performing the Merge

The following are copied from the specs.

1. Any files that have been modified in the given branch since the split point, but not modified in the current branch since the split point should be changed to their versions in the given branch (checked out from the commit at the front of the given branch). These files should then all be automatically staged. To clarify, if a file is “modified in the given branch since the split point” this means the version of the file as it exists in the commit at the front of the given branch has different content from the version of the file at the split point. Remember: blobs are content addressable!
   • Overwrite will throw error
   • For blobs that are needed to addToStage, first checkout these files (restoreBlobContent), because commiting a blob will NOT perform read write on anything other than the commit itself
2. Any files that have been modified in the current branch but not in the given branch since the split point should stay as they are.
   • Will NOT throw error if unstage
3. Any files that have been modified in both the current and given branch in the same way (i.e., both files now have the same content or were both removed) are left unchanged by the merge. If a file was removed from both the current and given branch, but a file of the same name is present in the working directory, it is left alone and continues to be absent (not tracked nor staged) in the merge.
4. Any files that were not present at the split point and are present only in the current branch should remain as they are.
5. Any files that were not present at the split point and are present only in the given branch should be checked out and staged.
   • Will throw error if unstage
6. Any files present at the split point, unmodified in the current branch, and absent in the given branch should be removed (and untracked).
7. Any files present at the split point, unmodified in the given branch, and absent in the current branch should remain absent.
8. Any files modified in different ways in the current and given branches are in conflict. “Modified in different ways” can mean that the contents of both are changed and different from other, or the contents of one are changed and the other file is deleted, or the file was absent at the split point and has different contents in the given and current branches. In this case, replace the contents of the conflicted file with

All operations other than the last one is implemented and tested.

The handling of the last situation (merge conflict) involves the diff algorithm. You can being used by the GNU diff, git, and many other programs.

Other Useful Info for Development

Java File Operations

• For single file/path java.io.File, java.nio.file.Path
• For general file/path java.nio.file.Files, java.nio.file.Paths

Copying a file:

import java.nio.file.Path;
import java.nio.file.Files;

java.nio.file.Files.copy(Path dst, Path src, StandardCopyOption option);

Java IO, String Formatting

Formatted Output: To output a complex datatype with different fields, use %[index]$[type][field_specifier]

e.g. Time

String s = String.format(
    "%1$ta %1$tb %1$td %1$tT %1$tY %1$tz",
    new Date(0)
);
​
// s: Thu Jan 01 08:00:00 1970 +0800

More on date string format: Formatter - Date/Time Conversions

The Collection Interface

Some subinterfaces of Collection are ordered, others are not.

To sort some unordered collections, you can create a new sorted copy using Java 8 Stream:

import java.util.List;
import java.util.stream.Collectors;
List<String> sortedNames = names.stream().sorted().collect(Collectors.toList());

Map doesn't implement forEach, to iterate through a map, use map.toEntrySet()

Java's Error and Exception

I added a class as a factory of GitletExceptions, but at first I am unsure about its naming.

Here's what I've found: https://www.cs.cmu.edu/~pattis/15-1XX/15-200/lectures/exceptions/index.html

• The class Error and its subclasses indicate something wrong with Java itself.
  • It is recommended that programs not throw, or attempt to catch, these errors
  • but instead let Java itself throw and terminate any program throwing them.
